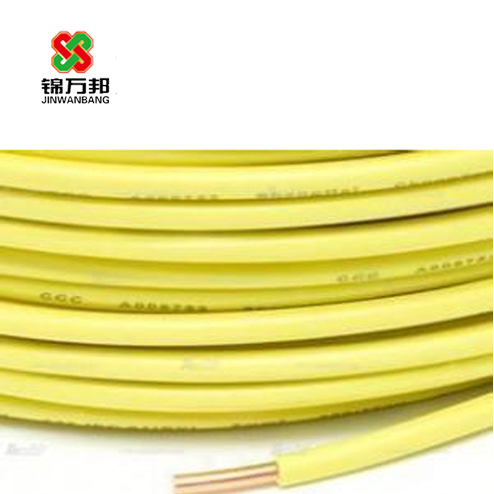

227 IEC01(BV),BLV 450/750VJ緣電纜
227 IEC01(BV),BLV 450/750VJ緣電纜適用于交流額定電壓U/U450/750V及以下的動力、照明、日用電器、儀器儀表及電信設備用銅芯或鋁芯聚氯乙烯J緣電纜（電線）
- 電 話：15956084188
- 傳 真：
- 郵 箱：229877070@qq.com
Description
| 產品詳細介紹 |
標 準：本產品按標準GB5023-1997，JB8734-1998或2271IEC國際標準制造型 號：227 IEC 01（BV）-銅芯聚氯乙烯J緣電纜（電線）BLV-鋁芯聚氯乙烯J緣電纜（電線）BVR-銅芯聚氯乙烯J緣電纜（電線）227 IEC10（BVV）-銅芯聚氯乙烯J緣聚氯乙烯護套圓形電纜（電線）BLVV-鋁芯聚氯乙烯J緣聚氯乙烯護套圓形電纜（電線）BVVB-銅芯聚氯乙烯J緣聚氯乙烯護套平形電纜（電線）BLVVB-鋁芯聚氯乙烯J緣聚氯乙烯護套平形電纜（電線）227 IEC 07（BV-90）-銅芯耐熱90℃聚乙烯J緣電線。 用 途：本產品適用于交流額定電壓U/U450/750V及以下的動力、照明、日用電器、儀器儀表及電信設備用銅芯或鋁芯聚氯乙烯J緣電纜（電線）。 使用特性： 1、U0/U為450/750和300/500 2、電纜（電線）長期允許工作溫度，BV-90型應不超過90℃，其它型號應不超過 70℃。 3、電纜（電線）敷設漫度應不低于0℃. |
| 227 IEC01(BV),BLV 450/750V | |||||||
| 導體標 稱截面 mm2 | 導體線芯 根數/單線 直徑 mm | J緣標 稱厚度 mm | 計算外徑 mm | 20°C時 大電流電阻 Ω/km 銅芯 | 70°C小 J緣電阻 MΩ.km 銅芯 | 成品近似重量 kg/km | |
| 銅芯Cu | 鋁芯Al | ||||||
| 1.5 | 1/1.38 | 0.7 | 2.78 | 12.2 | 0.011 | 19.5 | |
| 1.5 | 7/0.52 | 0.7 | 2.96 | 12.1 | 0.010 | 19.5 | |
| 2.5 | 1/1.78 | 0.8 | 3.38 | 7.41 | 0.010 | 30.8 | 15.4 |
| 2.5 | 7/0.68 | 0.8 | 3.64 | 7.41 | 0.009 | 30.8 | |
| 4 | 1/2.25 | 0.8 | 3.85 | 4.61 | 0.0085 | 45.6 | 21.0 |
| 4 | 7/0.85 | 0.8 | 4.05 | 4.61 | 0.0077 | 45.6 | |
| 6 | 71/2.76 | 0.8 | 4.36 | 3.08 | 0.0070 | 65.3 | 28.2 |
| 6 | 7/1.04 | 0.8 | 4.72 | 3.08 | 0.0065 | 65.3 | |
| 10 | 7/1.35 | 1 | 6.05 | 1.83 | 0.0065 | 111 | 49.0 |
| 16 | 7/1.70 | 1 | 7.1 | 1.15 | 0.0050 | 169 | 69 |
| 25 | 7/2.14 | 1.2 | 8.82 | 0.727 | 0.0050 | 265 | 108 |
| 35 | 7/2.52 | 1.2 | 9.96 | 0.524 | 0.0040 | 359 | 140 |
| 50 | 19/1.78 | 1.4 | 11.7 | 0.387 | 0.0045 | 485 | 190 |
| 70 | 19/2.14 | 1.4 | 13.5 | 0.268 | 0.0035 | 685 | 258 |
| 95 | 19/2.52 | 1.6 | 15.8 | 0.193 | 0.0035 | 946 | 354 |
| 120 | 37/2.03 | 1.6 | 17.4 | 0.153 | 0.0032 | 1181 | 433 |
| 150 | 37/2.25 | 1.8 | 19.4 | 0.124 | 0.0032 | 1453 | 534 |
| 185 | 37/2.52 | 2 | 21.6 | 0.0991 | 0.0032 | 1821 | 668 |
| 240 | 61/2.25 | 2.2 | 24.6 | 0.0754 | 0.0032 | 2383 | 869 |
| 300 | 61/2.52 | 2.4 | 27.5 | 0.0601 | 0.003 | 2983 | 1082 |
| 400 | 61/2.90 | 2.6 | 30.8 | 0.0470 | 0.0028 | 3800 | 1369 |
| BVR450/750V | |||||||||
| 標稱 截面 mm2 | 線芯結構 | J緣厚度mm | 計算外徑mm | 大外徑mm | 20°C時大電流電阻 Ω/km 銅芯 | 70°C小J緣電阻 MΩ.km | 環境溫度25°C 允許空氣中 敷設截流量 [A] | 成品 近似 重量 kg/km | |
| 根/直徑 mm | 外徑 mm | ||||||||
| 2.5 | 19/0.41 | 2.05 | 0.8 | 3.7 | 4.2 | 7.41 | 0.011 | 34 | 33.0 |
| 4.0 | 19/0.52 | 2.60 | 0.8 | 4.2 | 4.8 | 4.61 | 0.009 | 45 | 49.0 |
| 6.0 | 19/0.64 | 3.20 | 0.8 | 4.8 | 5.6 | 3.08 | 0.0084 | 58 | 71.0 |
| 10.0 | 49/0.52 | 4.68 | 1.0 | 6.7 | 7.6 | 1.83 | 0.0072 | 79 | 125.5 |
| 16 | 49/0.64 | 5.76 | 1.0 | 7.8 | 8.8 | 1.15 | 0.0062 | 111 | 181.0 |
| 25 | 98/0.58 | 7.68 | 1.2 | 10.1 | 11.1 | 0.727 | 0.0058 | 146 | 302 |
| 35 | 133/0.58 | 8.20 | 1.2 | 11.1 | 12.5 | 0.524 | 0.0052 | 180 | 395 |
| 50 | 133/0.68 | 10.20 | 1.4 | 13.0 | 14.5 | 0.387 | 0.0051 | 225 | 544 |
| 70 | 189/0.68 | 12.55 | 1.4 | 15.4 | 16.5 | 0.268 | 0.0045 | 280 | 728 |
| 227 IEC 10(BVV),300/500 | ||||||||
| 導體芯數 和 標稱截面 mm | 導體結構 根數/單線 直徑 mm | J緣 厚度 規定值 mm | 內護套 厚度 近似值 mm | 護套 厚度 規定值 mm | 平均外徑 | 70°C小 J緣電阻 MΩ.km | 成品 近似 重量 kg/km | |
| 下限 mm | 上限 mm | |||||||
| 2x1.5 | 1/1.38 | 0.7 | 0.4 | 1.2 | 7.6 | 10.0 | 0.011 | 105.7 |
| 2x1.5 | 7/0.52 | 0.7 | 0.4 | 1.2 | 7.8 | 10.5 | 0.010 | 111.3 |
| 2x2.5 | 1/1.78 | 0.8 | 0.4 | 1.2 | 8.6 | 11.5 | 0.010 | 114.6 |
| 2x2.5 | 7/0.68 | 0.8 | 0.4 | 1.2 | 9.0 | 12.0 | 0.009 | 167.9 |
| 2x4 | 1/2.25 | 0.8 | 0.4 | 1.2 | 9.6 | 12.5 | 0.0085 | 190.3 |
| 2x4 | 7/0.85 | 0.8 | 0.4 | 1.2 | 10.0 | 13.0 | 0.0077 | 214.1 |
| 2x6 | 1/2.76 | 0.8 | 0.4 | 1.2 | 10.5 | 13.5 | 0.0070 | 245.5 |
| 2x6 | 7/1.04 | 0.8 | 0.4 | 1.2 | 11.0 | 14.0 | 0.0065 | 282.0 |
| 2x10 | 7/1.35 | 1.0 | 0.6 | 1.4 | 13.0 | 16.5 | 0.0070 | 446.2 |
| 2x16 | 7/1.70 | 1.0 | 0.6 | 1.4 | 15.5 | 20.0 | 0.0052 | 617.1 |
| 2x25 | 7/2.14 | 1.2 | 0.8 | 1.4 | 18.5 | 24.0 | 0.0050 | 914.7 |
| 2x35 | 7/2.52 | 1.2 | 1.0 | 1.6 | 21.0 | 27.5 | 0.0044 | 1225.0 |
| 3x1.5 | 1/1.38 | 0.7 | 0.4 | 1.2 | 8.0 | 10.5 | 0.011 | 124.5 |
| 3x1.5 | 7/0.52 | 0.7 | 0.4 | 1.2 | 8.2 | 11.0 | 0.010 | 143.5 |
| 3x2.5 | 1/1.78 | 0.8 | 0.4 | 1.2 | 9.2 | 12.0 | 0.010 | 175.0 |
| 3x2.5 | 7/0.68 | 0.8 | 0.4 | 1.2 | 9.4 | 12.5 | 0.009 | 202.4 |
| 3x4 | 1/2.25 | 0.8 | 0.4 | 1.2 | 10.0 | 13.0 | 0.0085 | 235.8 |
| 3x4 | 7/0.85 | 0.8 | 0.4 | 1.2 | 10.5 | 13c.5 | 0.0077 | 261.6 |
| 3x6 | 1/2.76 | 0.8 | 0.4 | 1.4 | 11.5 | 14.5 | 0.0070 | 320.0 |
| 3x6 | 7/1.04 | 0.8 | 0.4 | 1.4 | 12.0 | 15.5 | 0.0065 | 362.5 |
| 3x10 | 7/1.35 | 1.0 | 0.6 | 1.4 | 14.0 | 17.5 | 0.0070 | 557.9 |
| 3x16 | 7/1.7 | 1.0 | 0.8 | 1.4 | 16.5 | 21.5 | 0.0052 | 799.6 |
| 3x25 | 7/2.14 | 1.2 | 0.8 | 1.6 | 20.5 | 26.0 | 0.0050 | 1192.4 |
| 3x35 | 7/2.52 | 1.2 | 1.0 | 1.6 | 22.0 | 29.0 | 0.0044 | 1577.5 |
| 4x1.5 | 1/1.38 | 0.7 | 0.4 | 1.2 | 8.6 | 11.5 | 0.011 | 152.4 |
| 4x1.5 | 7/0.52 | 0.7 | 0.4 | 1.2 | 9.0 | 12.0 | 0.010 | 172.6 |
| 4x2.5 | 1/1.78 | 0.8 | 0.4 | 1.2 | 10.0 | 13.0 | 0.010 | 215.3 |
| 4x2.5 | 7/0.68 | 0.8 | 0.4 | 1.2 | 10.0 | 13.5 | 0.009 | 246.7 |
| 4x4 | 1/2.25 | 0.8 | 0.4 | 1.4 | 11.5 | 14.5 | 0.0085 | 302.5 |
| 4x4 | 7/0.85 | 0.8 | 0.4 | 1.4 | 12.0 | 15.0 | 0.0077 | 335.2 |
| 4x6 | 1/2.76 | 0.8 | 0.6 | 1.4 | 12.5 | 16.0 | 0.00700 | 398.1 |
| 4x6 | 7/1.04 | 0.8 | 0.6 | 1.4 | 13.0 | 17.0 | 0.0065 | 464.0 |
| 4x10 | 7/1.35 | 1.0 | 0.6 | 1.4 | 15.5 | 19.0 | 0.0070 | 695.5 |
| 4x16 | 7/1.70 | 1.0 | 0.8 | 1.4 | 18.0 | 23.5 | 0.0052 | 1009.2 |
| 4x25 | 7/2.14 | 1.2 | 1.0 | 1.6 | 22.5 | 28.5 | 0.0050 | 1528.2 |
| 4x35 | 7/2.52 | 1.2 | 1.0 | 1.6 | 24.5 | 32.0 | 0.0044 | 1997.2 |
| 5x1.5 | 1/1.38 | 0.7 | 0.4 | 1.2 | 9.4 | 12.0 | 0.011 | 183.2 |
| 5x1.5 | 7/0.52 | 0.7 | 0.4 | 1.2 | 9.8 | 12.5 | 0.010 | 205.8 |
| 5x2.5 | 1/1.78 | 0.8 | 0.4 | 1.2 | 11.0 | 14.0 | 0.010 | 259.6 |
| 5x2.5 | 7/0.68 | 0.8 | 0.4 | 1.2 | 11.0 | 14.5 | 0.009 | 297.2 |
| 5x4 | 1/2.25 | 0.8 | 0.6 | 1.4 | 12.5 | 16.0 | 0.0085 | 365.1 |
| 5x4 | 7/085 | 0.8 | 0.6 | 1.4 | 13.0 | 17.0 | 0.0077 | 419.7 |
| 5x6 | 1/2.76 | 0.8 | 0.6 | 1.4 | 13.5 | 17.5 | 0.0070 | 498.3 |
| 5x6 | 7/1.04 | 0.8 | 0.6 | 1.4 | 14.5 | 18.5 | 0.0065 | 563.6 |
| 5x10 | 7/1.70 | 1.0 | 0.6 | 1.4 | 17.0 | 21.0 | 0.0070 | 849.0 |
| 5x16 | 7/2.14 | 1.2 | 0.8 | 1.6 | 20.5 | 26.0 | 0.0052 | 1254.7 |
| 5x25 | 7/2.14 | 1.2 | 1.0 | 1.6 | 24.5 | 31.5 | 0.0050 | 1874.1 |
| 5x35 | 7/2.52 | 1.2 | 1.2 | 1.6 | 27.0 | 35.0 | 0.0044 | 2481.4 |
| BVV BLVV 300/500V JBB8734.2-1998芯數X截面導體結構J緣厚度J緣外徑護套厚度護套外徑材料凈重成品近似重量根/單線直徑直徑銅Cu鋁AlPVCJ緣PVC護套銅Cu鋁Al1x0.751/0.970.970.62.20.83.86.6 4.210.321.1 1x1.01/1.131.130.62.50.84.18.9 5.311.425.6 1x1.51/1.381.380.72.80.84.413.3 6.412.432.1 1x1.57/0.521.560.73.20.84.813.3 8.713.835.8 1x2.51/1.781.780.83.40.85.022.16.79.014.545.630.21x2.57/0.682.040.83.90.85.522.8 12.416.251.4 1x41/2.252.250.83.90.95.735.410.810.918.664.940.31x47/0.852.550.84.40.96.235.6 14.620.570.7 1x61/2.762.760.84.40.96.253.216.212.620.586.349.31x67/1.043.120.85.10.96.953.3 18.723.295.2 1x107/1.354.051.06.30.98.189.827.027.027.9144.781.9 |
| BVVB BLVVB 300/500V JB8734.2-1998芯數X截面導體結構J緣護套厚度mm 材料凈重Kd/km成品近似重量kg/km根/單線直徑直徑mm 厚度mm 直徑mm 銅Cu鋁AlPVCJ緣PVC護套銅Cu鋁Al2x0.751/0.970.970.62.170.913.1 8.117.038.2 2x1.01/1.131.130.62.330.917.8 8.918.044.7 2x1.51/1.381.380.72.780.929.9 12.521.063.4 2x2.51/1.781.780.83.381.044.213.417.828.090.159.22x41/2.252.250.83.851.070.721.521.031.4123.173.92x47/0.852.550.84.201.071.2 23.933.9129.0 2x61/2.762.760.84.361.1106.432.324.539.0169.995.82x67/1.043.120.84.801.1106.5 28.642.4177.5 2x107/1.354.051.06.101.2179.554.044.757.7281.9156.43x0.751/0.970.970.62.170.919.7 12.222.654.5 3x1.01/1.131.130.62.330.926.8 13.424.064.1 3x1.51/1.381.380.72.780.944.8 18.828.091.6 3x2.51/1.781.780.83.381.066.420.126.637.4130.484.13x41/2.252.250.83.851.1106.132.231.546.6184.2110.33x47/0.852.550.84.201.1106.7 35.950.4193.0 3x61/2.762.760.84.361.1159.748.436.752.0248.4137.13x67/1.043.120.84.801.1159.8 42.957.0259.7 3x107/1.354.051.06.101.2269.381.167.177.8414.2226.0 |
